Tutorial

Blue Yeti Microphone

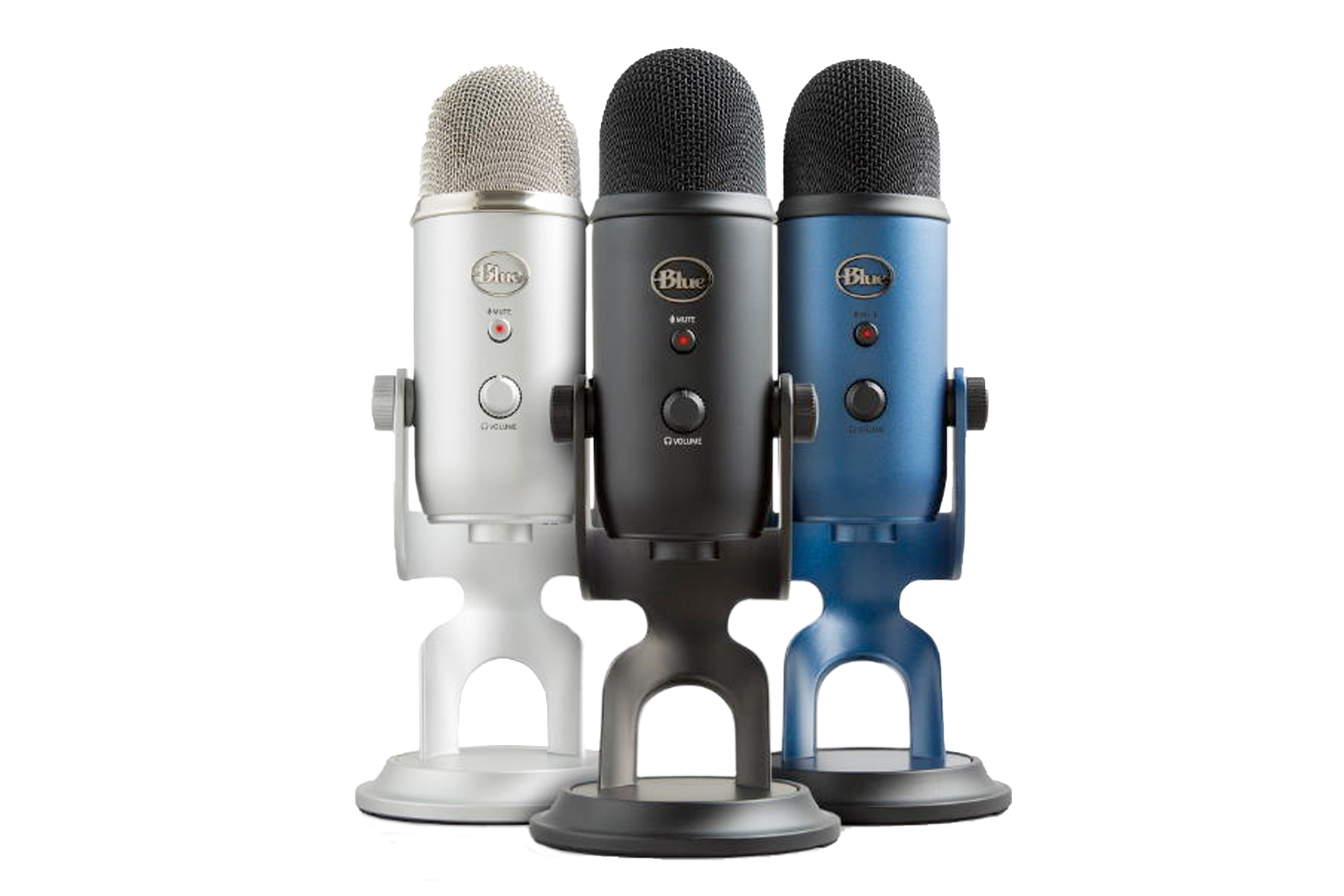

The Blue Yeti is a USB multi direction condenser microphone compatible with both Vista and 7 on Windows and Apple OSX or higher.The Yeti doesn’t require batteries or a power supply. It uses bus voltage from your computer to power it. All you have to do is plug the USB Microphone into your desktop/laptop. In order to use the Blue Yeti USB microphone sufficiently you’ll require sound recording or editing software that allows for quality digital signal processing.

1/9

The Blue Yeti is compatible with most sound editing software including: AudacityReaper and Sony Sound Forge. The Yeti records at a good quality default setting of 16 bit rate and a sample rate of 48 khz. The analog to digital conversion in the Yeti offers excellent performance with audio sampled at 48 kHz with 16-bits of resolution. The frequency response is full range (20Hz – 20kHz) with a maximum SPL (speaker pressure level) of 120 dB. Microphone Polar Pattern’s Polar patterns are kind of like the shape of the area that a microphone picks up.

2/9

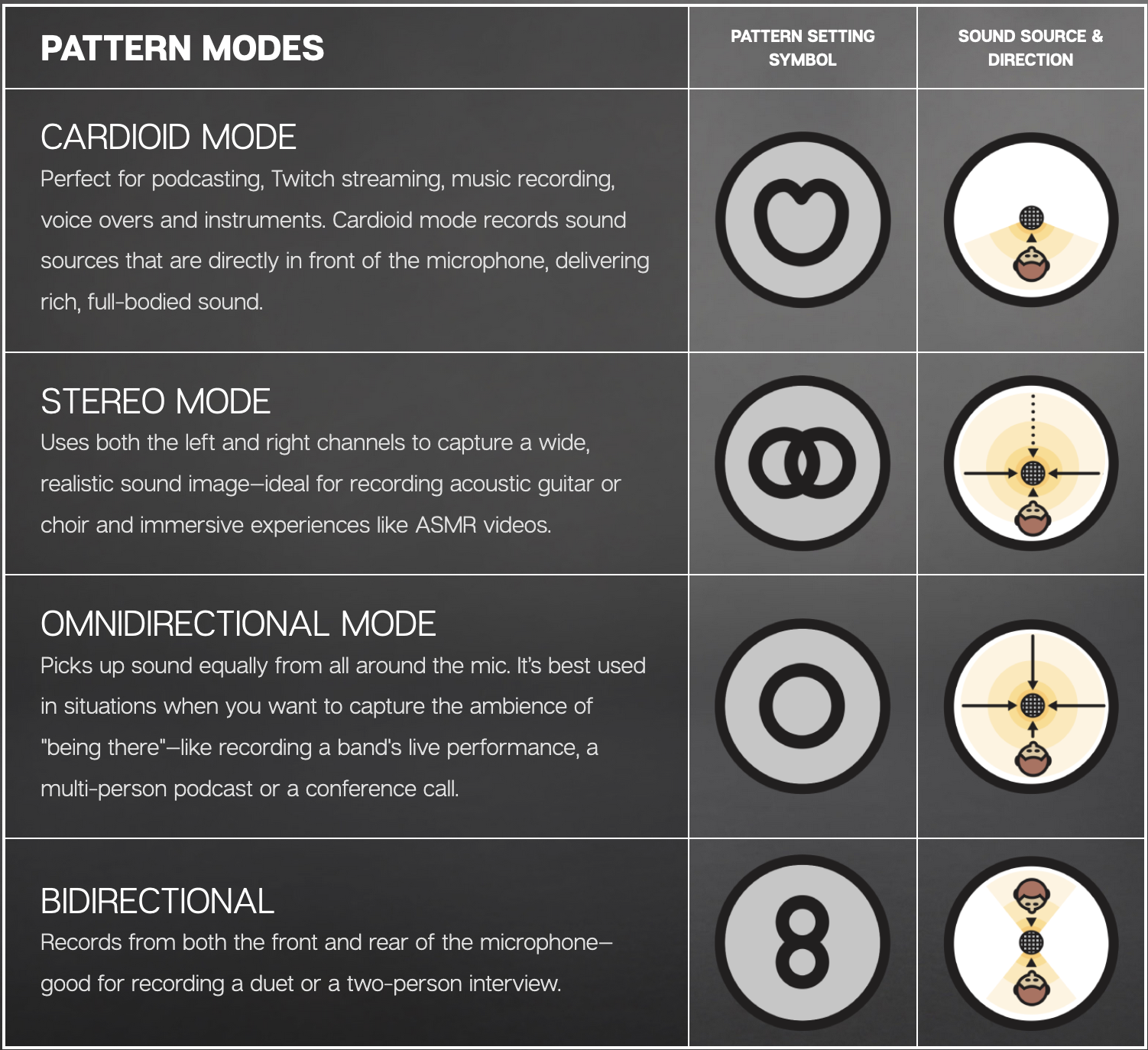

The Blue Yeti has four pattern settings. You can quickly change between any of Yeti’s four pattern settings by rotating the pattern selector knob at the back of the mic.

1) Stereo Mode is only ideal for recording music. It captures a realistic stereo image from a variety of sources.

2) Cardioid only hears what’s right in front of it at full volume and other sounds at increasingly diminished volume as the sound source moves further away from the center of the mic. This setting is the most commonly used mode and can be useful in most situations when recording a focused sound source such as an Oral History interview. Cardioid will deliver the most direct, rich sound. It is important to arrange the microphone directly in front of your interviewee and if you want your questions recorded speak up!

3/9

3) Omnidirectional hears everything at equal volume from all angles (in a 360 degree sphere surrounding the mic) making it ideal for recording a conversation between multiple parties around a room, a conference call, or any other situations where you want to capture everything in the room. Omnidirectional will also result in picking up more background noise and unwanted hiss.

4) Bidirectional Mode is designed to pick up sound at the front and rear of the microphone, while the sounds to the sides are minimized. The bidirectional setting is very useful in recording an interview with two or more guests.



4/9

Hardware Setup To set up Hardware for Windows 7
  • Open Control Panel, then select Hardware/Sound On Hardware/sound page click sound, then choose recording tab.
  • Ensure that the Blue mic is selected as the default input device Set your volume in the levels menu.
  • To set up Hardware for Windows Vista Open Control panel, then select sound. Select Recording tab: insure the Blue micis selected as working with check mark.
  • Click on properties; select the levels tab, set your input level, click apply then OK.

To Set up Hardware for Mac

  • Open Apple menu select System Preferences. Double-click Sound preference file.
  • Click Input tab. Under chose a device for sound input dialog box double-click the Blue mic. Set input volume to the appropriate level.

5/9

Trouble Shooting:

If you’re not hearing anything or the microphone doesn’t seem to be working:

  • Verify that the Blue Yeti mic is properly connected to the computer with the USB port. The red indicator light should be lit if the Yeti is fully plugged in.
  • Ensure that Blue Microphone’s Yeti is the selected sound source. in your computers audio settings.
  • Confirm that the headphone volume knob is turned up, with the tab pointing up to start. Also confirm that the microphone is not currently muted (indicator light should be solid, not flashing).





6/9

The Recording is not loud enough.

Increase the microphone gain by turning the microphone gain knob clockwise or try decreasing the distance between your Yeti and your sound source. Speakers feedback and distortion…. Anytime you use a microphone with live speakers or open back headphones, there is a potential for feedback. You need to make sure that the speakers are not pointed directly at the microphone. Also, you should make sure that your speaker/headphone volume isn’t loud enough to be picked up by the microphone. Decrease the microphone gain by turning the microphone gain knob counterclockwise or try increasing the distance between your Yeti and your sound source Background noise.

7/9

Recording:

The Blue Yeti is very sensitive and there’s no shock mount attached to it, so be aware of background noise and make sure it’s on a stable shock absorbent surface.

 Before recording make sure to turn off the internet and all unnecessary computer programs. Internet pop up updates or windows can stop the recording or create unwanted audio artifacts on the track. Using multiple programs while you’re recording may result in the computer freezing up.

8/9

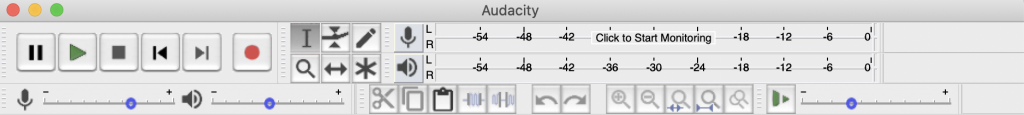

When you open Audacity the program will have a mixer toolbar. The drop down menu will give you input options. The program should recognize the Blue Yeti microphone once it’s plugged in. Scroll down and select the Yeti Blue.

9/9

The left hand slider lets you control the output level of your soundcard while the right hand slider controls the input level of your microphone or recording level setting of the soundcard driver.

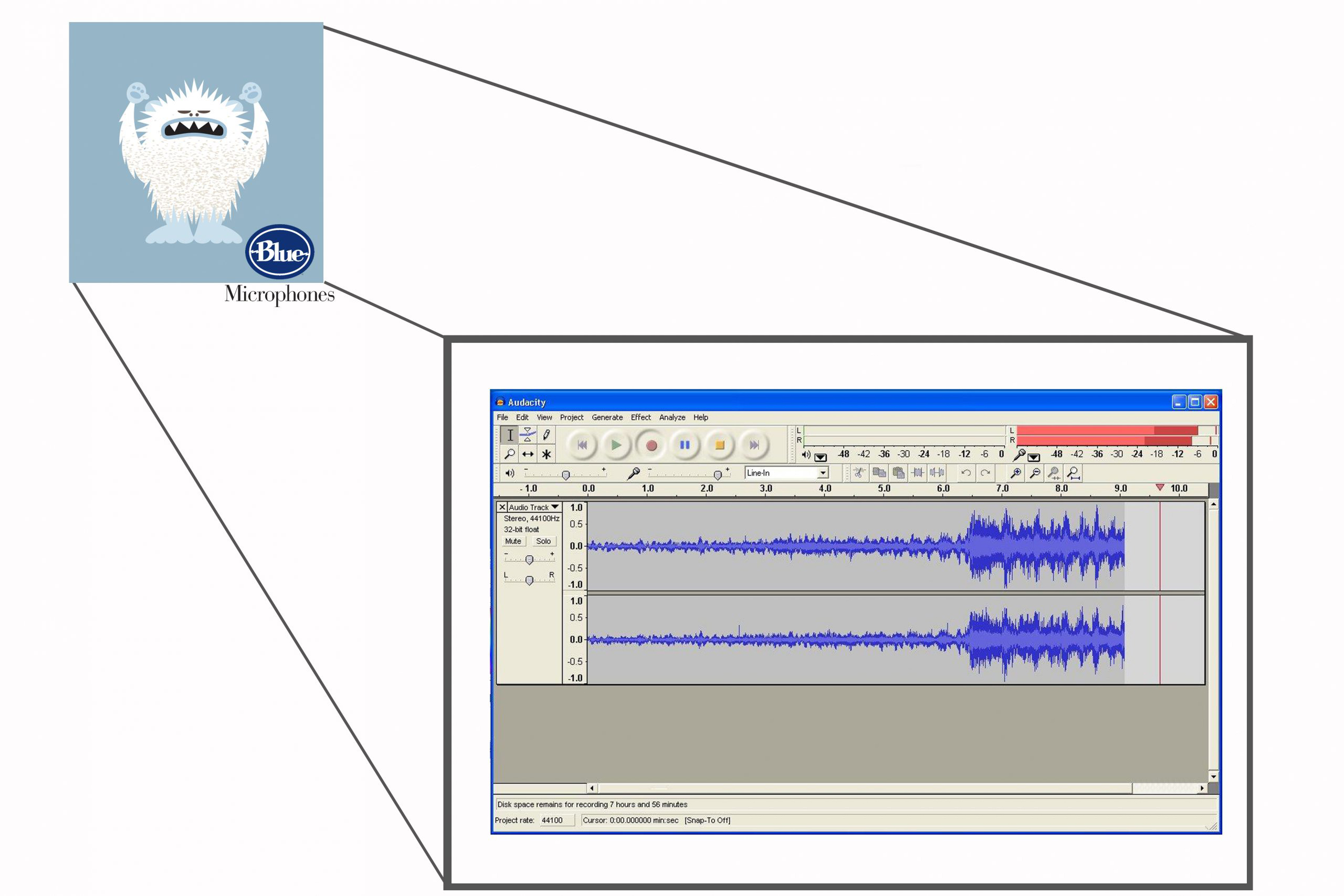

Record a test track by clicking on the record button. Now have your subject speak into the microphone. Adjust the levels using audacity’s input level and the gain on the Blue Yeti. Ideally your source sound should peak reaches between -12 and -6 db. Audacity Interface Example Once your levels are set stop the track and close the recording. You are now ready to record for real. Start a new recording by clicking on the record button.
